0.50-inch OLED display single module | 1000 brightness 1600×1200 60~120Hz high refresh rate, dedicated for outdoor / VR / medical devices, no assembly

Product Categories
HuaXin Technology CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

0.50-inch OLED display single module | 1000 brightness 1600×1200 60~120Hz high refresh rate, dedicated for outdoor / VR / medical devices, no assembly

Brand Name : HuaXin

Model Number : HX050WGM01

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1~1000

Price : $100~$160

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : AR display

Size : 0.5 inch

Name : Micro oled display

Resolution : 1600*1200

interface : MIPI

View angle : all

Brightness : 1000 C/D

testing board : HDMI or type C optional

Contact Now

【0.50-inch OLED Single Module】1000 High Brightness, 1600×1200 High Definition, 60~120Hz Adjustable Refresh Rate, Suitable for VR Micro-displays / Outdoor Detectors / Medical Micro Devices, Plug-and-Play, Self-illuminating with High Contrast
Technical Specifications
Attribute Value
Display Technology AR display
Size 0.5 inch
Resolution 1600×1200
Interface MIPI
View Angle All
Brightness 1000cd/m²
Testing Board HDMI or Type C optional
Part No. HX050WGM01

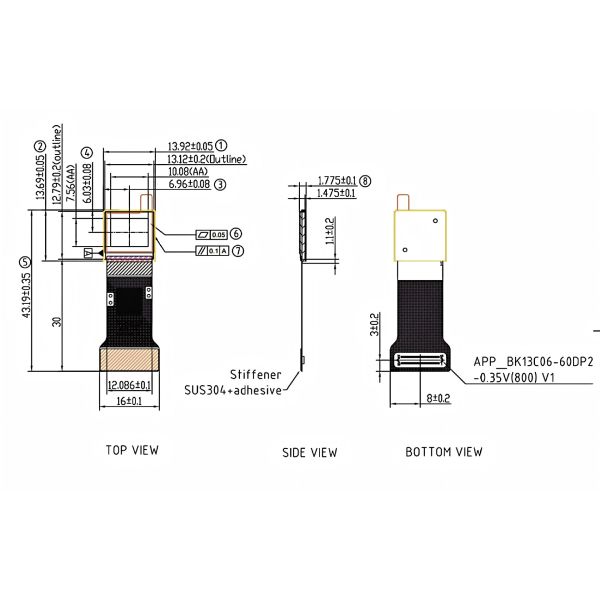

AA Size 10.08mm × 7.56mm / 0.50" diagonal
Product Images
0.50-inch OLED display single module | 1000 brightness 1600×1200 60~120Hz high refresh rate, dedicated for outdoor / VR / medical devices, no assembly

0.50-inch OLED display single module | 1000 brightness 1600×1200 60~120Hz high refresh rate, dedicated for outdoor / VR / medical devices, no assembly
0.50-inch OLED display single module | 1000 brightness 1600×1200 60~120Hz high refresh rate, dedicated for outdoor / VR / medical devices, no assembly
0.50-inch OLED display single module | 1000 brightness 1600×1200 60~120Hz high refresh rate, dedicated for outdoor / VR / medical devices, no assembly
0.50-inch OLED display single module | 1000 brightness 1600×1200 60~120Hz high refresh rate, dedicated for outdoor / VR / medical devices, no assembly
0.50-inch OLED display single module | 1000 brightness 1600×1200 60~120Hz high refresh rate, dedicated for outdoor / VR / medical devices, no assembly
Micro OLED Technology
Key Advantages
  • Ultra-High Pixel Density (PPI)
  • Thin, Lightweight, and compact design
  • Superior Image Quality
  • Lower power consumption
  • Wide operating Temperature Range
  • High brightness & Efficiency (with advanced designs)
  • Manufacturing & Scalability benefits
Limitations
  • High production costs & limited supply
  • Limited brightness (compared to Micro LED)
  • Limited view angles
  • Shorter lifespan (compared to micro LED)
  • Limited application scope (small display only)
  • Motion Blur & Persistence issues (in VR)
  • Competition from micro LED
Huaxin Technology Advantages
  • Factory located in cost-effective inland city
  • Most advanced equipment for stable quality
  • Most processes use fully automatic equipment for efficiency and quality
  • Professional engineers with 20+ years experience in LCD field
  • Self-design capability for customized products
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module
Company Profile

Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi
Founded: 2009
High technology enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, OLED

Product Portfolio
  • LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB, TBA, COG, TP, OLED and other series
Company Statistics
  • Registered capital: 20 million
  • Current staff: 500+
  • R&D accounts for 10%
  • QC accounts for 15%
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Unit
LCD Production 4.5 9 9 9 9 Thousands of logarithms/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
Product Applications
  • VR/AR/MR headsets
  • Military/aerospace
  • Medical devices and microdisplays
  • Camera & electronic viewfinders
  • Automotive displays
  • Wearable & smart glasses
Display Technology Comparison
Feature Micro OLED Traditional OLED MicroLED
Substrate Silicon wafer Glass/plastic Sapphire/glass
PPI 3,000-5,000+ 400-800 1,000+
Size <1 inch common Smartphone/TV sizes Scalable
Power Use Low Medium Very Low
Lifespan Moderate (OLED aging) Moderate Very Long
Cost High Moderate Very high
Micro OLED Challenges
  • Limited lifespan (blue OLEDs degrade faster)
  • Higher manufacturing cost due to silicon wafer integration
  • Currently small sizes (not suitable for TVs)
Future Outlook
Expected to dominate AR/VR and wearable displays due to unmatched pixel density. Companies like Sony, Samsung, BOE, and eMagin are investing heavily in this technology.
