0.71-Inch TFT Circular IPS LCD Screen | 12PIN Soldered Connection, 360° HD Full-View, Vivid Color Display for Smart Wearables & Mini Instruments

Brand Name : HuaXin

Model Number : HX150ROU010

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1000

Price : $1.3-$2

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : TFT module

Name : tft panel

Display size : 0.71 inch

Resolution : 160*160

interface : SPI

Driving IC : GC9D01

Brightness : 350C/D

view angle : all

Contact Now

0.71" TFT Round IPS LCD Module | 12PIN , HD Full-View with 360° Visibility, Low Power & Easy Integration for Portable Mini Devices

Technical Specifications
Display Technology TFT module
Display Size 0.71 inch
Resolution 160×160
Interface SPI
Driving IC

GC9D01
Brightness 350C/D
View Angle All
Part No. HX1071ROU010

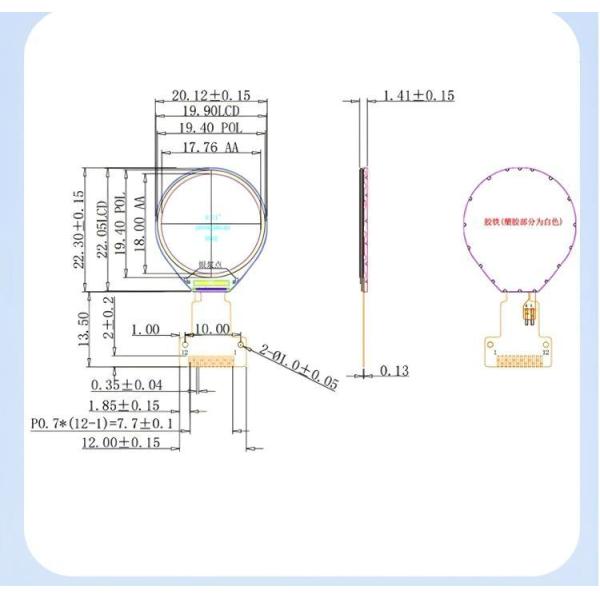

Outline Size (mm)

20.12(H)*22.3(V)*1.81(D) mm
AA Size (mm) 18×18mm
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Product Images
0.71-Inch TFT Circular IPS LCD Screen | 12PIN Soldered Connection, 360° HD Full-View, Vivid Color Display for Smart Wearables & Mini Instruments0.71-Inch TFT Circular IPS LCD Screen | 12PIN Soldered Connection, 360° HD Full-View, Vivid Color Display for Smart Wearables & Mini Instruments0.71-Inch TFT Circular IPS LCD Screen | 12PIN Soldered Connection, 360° HD Full-View, Vivid Color Display for Smart Wearables & Mini Instruments0.71-Inch TFT Circular IPS LCD Screen | 12PIN Soldered Connection, 360° HD Full-View, Vivid Color Display for Smart Wearables & Mini Instruments0.71-Inch TFT Circular IPS LCD Screen | 12PIN Soldered Connection, 360° HD Full-View, Vivid Color Display for Smart Wearables & Mini Instruments

0.71-Inch TFT Circular IPS LCD Screen | 12PIN Soldered Connection, 360° HD Full-View, Vivid Color Display for Smart Wearables & Mini Instruments
Manufacturer Advantages
  • Cost-effective production facility in inland China
  • Advanced equipment ensuring stable product quality
  • Automated manufacturing processes for efficiency and consistency
  • Experienced engineering team with 20+ years in LCD technology
  • Custom design capabilities for specialized requirements
About Huaxin Technology (Enshi) Co., LTD

Established in 2009 and located in Hubei Enshi, Huaxin Technology is a high-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.

Product Range
  • VA, TN, HTN, STN, FSTN, CSTN LCD series
  • COB, TBA, COG, TP, LED backlight LCM series
Company Details
Registered capital 20 million
Staff 500+ (10% R&D, 15% QC)
Certifications ISO14001, ISO9001/IATF16949, SGS
Production Capacity (k/Day)
Product 2021 2022 2023 2024 2025
LCD 4.5 9 9 9 9
LCM 70 150 300 450 450
Backlight 100 200 300 500 500
OLED 10 20 30 40 50
Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Characteristics
  • Excellent image quality with high resolution and color accuracy
  • Fast response times for smooth transitions
  • Wide viewing angles with minimal color shift
  • Energy efficient operation
  • Available in various sizes for different applications
  • LED backlighting for consistent illumination
TFT Display Limitations
  • Viewing angles may be limited compared to other technologies
  • Moderate contrast ratios
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving content
  • Limited flexibility in physical form
  • Color gamut may be narrower than some alternatives
